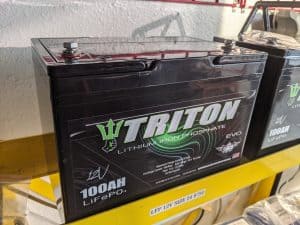

Affordable, Long Life Deep Cycle Battery for Trailers, Van Life and RV's. Triton Brand Lithium Iron (LFP) Deep Cycle Battery in Group Size 24 On Sale for $750 plus tax
12 volt 100Ah 1280Wh Capacity and 3-5000 cycles at 50% depth of discharge
Triton LFP - lithium iron phosphate chemistry
Five Year Warranty
On Sale at Deep Cycle Battery San Diego for $750 ea plus tax and with old lead acid battery for core
Q: What is a Triton Lithium Deep Cycle Battery?
A: The latest in safe lithium battery technology. The Triton LFP is a direct replacement for flooded and AGM lead-acid batteries and utilizing safe LiFePO4 lithium battery chemistry. By replacing a traditional lead-acid battery with a Triton LFP, you will get 2x the usable energy with ½ the weight.
Q: What is the life of a Triton Lithium Deep Cycle Battery?
A: The battery will last anywhere between 2 and 5 thousand charge and discharge cycles, depending on the operating temperature, amps used to recharge, depth of discharge and charger quality (we recommend Victron brand equipment).
Q: What are the best uses of a Triton Lithium Deep Cycle Battery?
A: As an energy storage source the battery easily stores energy from solar, wind, or an AC charger.
Most common applications are RV's, Toy Haulers, Airstream trailers, Sprinters, Promaster vans and anywhere a clean, non spill battery is needed. It can also be used to start small engines (marine, up to 90 HP)
Q: Can the Triton LFP be connected in series and or parallel?
A: The batteries can be connected in unlimited parallel connections at 12v and increasing capacity with every parallel. A maximum of two series connections = 24 volts
Q: What is the size and weight of the Triton Lithium Deep Cycle Battery?
A: Dimensions are consistent with group 24 battery sizes - 10 1/8 x 6 3/8 x 9" tall. 25 lbs
Q: What are the battery charging parameters?
A: Charging voltage is 14.4 to 14.6 volts (same as AGM settings) Float charge at 13.4 to 13.6 volts
Low voltage disconnect at 11.5 volts
Q: Can a standard battery charger be used?
A: If a lithium battery setting is not available on your charger, you can use the AGM setting. If lithium settings are available, the battery will recharge faster
Q: What about my engine alternator?
A: Yes but if you want the best performance and safety, you should install battery DC-DC charger.
DC-DC chargers are available by Victron, Sterling, Renogy, etc.
Q: What are the temperature limitations?
A: First note, all batteries have temp limits, not just LFP.
The battery can be charged between 32F and 113F
Discharge the battery between -4F and 140F
By Connecting Two Triton Lithium Batteries in Parallel (2560 Wh) we can Predict Run Time Examples for Connected Appliances.
With a 94% efficiency, two Triton LFP batteries in parallel have an output of 2406 Wh
- 10 watt cell phone. Math equation of 2406Wh / 10 watts = 240 hours
- 30 watt light. Math equation of 2406Wh / 30 watts = 85 hours
- 150 watt refrigerator or cooler. Math equation of 2406Wh / 150 watts = 16 hours
- 20 watt fan. Math equation of 2406Wh / 20 watts = 128 hours
- 50 watt TV. Math equation of 2406Wh / 50 watts = 48 hours
| Electrical Specifications | |
| Nominal Voltage | 12.8 Volts |
| Nominal Capacity | 100 Ah |
| Capacity @20 Amp | 300 Min |
| Energy | 1280Wh |
| Resistance | ≤30m Ω @ 50% SOC |
| Efficiency | 0.99 |
| Self-Discharge | <3.5% per Month |
| Maximum Batteries in Series | 2 |
| Discharge Specifications | |
| Maximum Continues Discharge Current | 100 Amp |
| Peak Discharge Current | 260 Amp (≤5 s) |
| BMS Discharge Current Cut-Off | 300A±50A(2.2±1ms) |
| Recommended Low Voltage Disconnect | 11 Volts |
| BMS Discharge Voltage Cut-Off | 8.8 V(2.2±0.08vpc) |
| Reconnect Voltage | 10 V (2.5±0.1vpc) |
| Short Circuit Protection | 200-400 ms |
| Temperature Specifications | |
| Discharge Temperature | -4 to 140°F (-20 to 60°C) |
| Charge Temperature | 32 to 113°F (0 to 45°C) |
| Storage Temperature | 23 to 95°F (-5 to 35°C) |
| BMS High Temperature Cut-Off (Discharge) | 167°F (75°C) |
| BMS Reconnect Temperature | 122°F (50°C) |
| Low Temperature Cut-Off (Charge) | 32°F (0°C) |
| High Temperature Cut -Off (Charge) | 129.2°F (54°C) |
| Mechanical Specifications | |
| Dimensions (L x W x H) | 10⅛” x 6⅝ x 9 |
| Weight | 26 Lbs. |
| Terminal Thread | 5/16″ |
| Case Material | ABS |
| Enclosure Protection | IP56 |
| Cell Type | Prismatic |
| Chemistry | LiFePO4 |
| Configuration | 4S1P |
| Charge Specification | |
| Recommended Charge Current | 50 Amp |
| Maximum Charge Current | 100 Amp |
| Recommended Charge Voltage | 14.6 Volts |
| BMS Charge Voltage Cut-Off | 15V (3.75±0.1V) |
| BMS Reconnect Voltage | 14.2 Volts |
| Balancing Voltage | 14.0V(3.5±0.025vpc) |
| Balancing Current | 30±5,mA |
