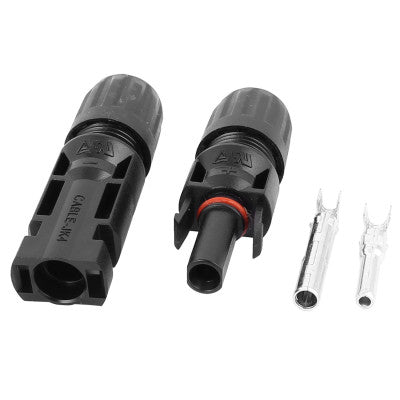

MC4 Connectors For Solar – Pair
MC4 Connectors For Solar – Pair is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery or Pick Up Available
Delivery or Pick Up Available
Don't feel like picking up? We're more than happy to deliver. Free delivery on two or more batteries in the San Diego area, additional fees may apply.
MC4 Connectors For Solar – Pair
Description
Description
Note that with these connectors, the ones that would appear to be female based on the molded component is in fact male, since the conductive pin is male. Likewise for the male housing with the female pin.
Specifications:
Rated current: 30A (2.5-4.0mm2)
Degree of protection: IP2 * / IP67
Rated voltage: 1000V DC
Flammability rating: UL94-V0
Test voltage: 6000V (50Hz, 1min)
Safety: II
Overvoltage category / Pollution Index: CATIII / 2
Adapter Wire: OD4.5-7.0 (2.5-4.0mm2)
Connector contact resistance: 0.5m¦¸
Insertion / Extraction Force: less or equal to 50N / equal or greater than 50N
Connector conductor material: copper, tin
Connection: Crimp
Connector Insulation material: PPO or PBT
Operating temperature range: -40 ~ +90 centigrade
