US Battery 8VGC XC2 170ah Golf Cart Battery
Description
Description
8VGC XC2 170 Ah @ 20 Hr Golf Cart Battery
FREE DELIVERY FOR TWO OR MORE IN SAN DIEGO
Part Number for Ordering US8VGCXC2
U.S. Battery’s Flooded Lead Acid batteries are engineered and proven to provide the fastest cycle-up to full rated capacity, and have the highest total energy delivered over the life of the battery.
DIMENSIONS
Length: 10 1/4” (260mm)
Width: 7 1/8” (181mm)
Height: 11 1/4” (286mm)
20 Hour Rate: 170 Ah
Minutes of Discharge @ 56 Amps: 118
Minutes of Discharge @ 25 Amps: 325

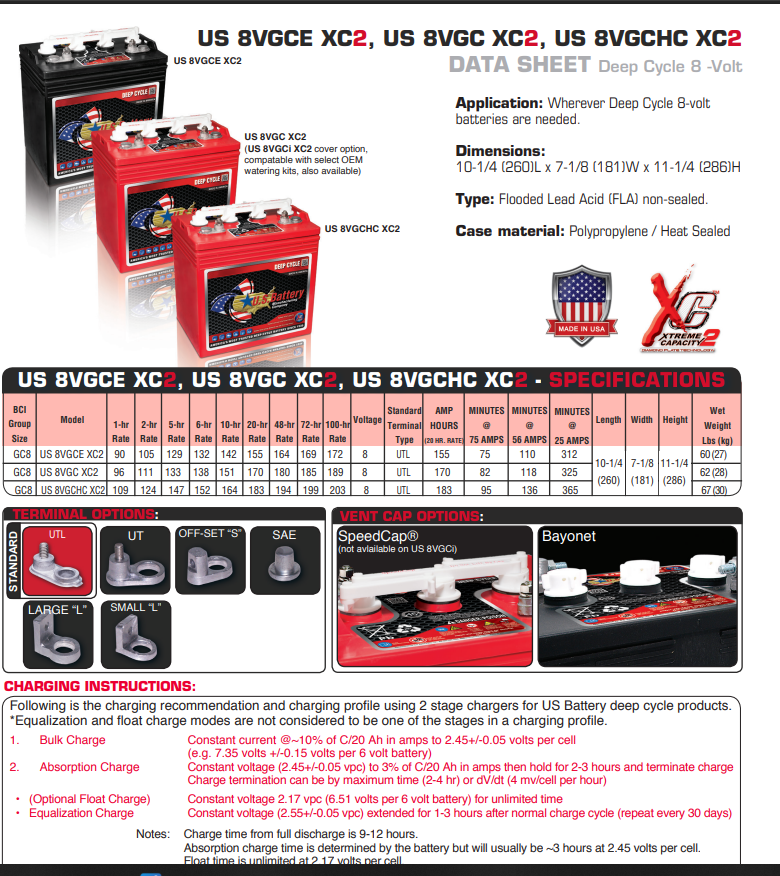

US Battery 8VGC XC2 Data Sheet
12 month free replacement 12 month pro rated warranty
Or Convert to 48V Golf Cart Lithium
Hydrometer
A battery hydrometer is an inexpensive measuring tool to find the state of charge of flooded lead acid batteries.
Here is how it works: When the flooded lead acid battery accepts charge, the sulfuric acid is heavier than the distilled water, causing the specific gravity (SG) to increase. Thus as the state of charge decreases through use, the sulfuric acid removes itself from the electrolyte and binds to the plate, forming lead sulfate material. The specific gravity or density of the electrolyte becomes lighter and more like water, causing the (SG) the specific gravity to get lower. Table 3 shows SG vs % SOC
| Approximate state-of-charge |
Average specific gravity |
Open circuit voltage | |||
| 2V | 6V | 8V | 12V | ||
| 100% | 1.265 | 2.10 | 6.32 | 8.43 | 12.65 |
| 75% | 1.225 | 2.08 | 6.22 | 8.30 | 12.45 |
| 50% | 1.190 | 2.04 | 6.12 | 8.16 | 12.24 |
| 25% | 1.155 | 2.01 | 6.03 | 8.04 | 12.06 |
| 0% | 1.120 | 1.98 | 5.95 | 7.72 | 11.89 |
