USAGM8D
USAGM8D is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery or Pick Up Available
Delivery or Pick Up Available
Don't feel like picking up? We're more than happy to deliver. Free delivery on two or more batteries in the San Diego area, additional fees may apply.
USAGM8D

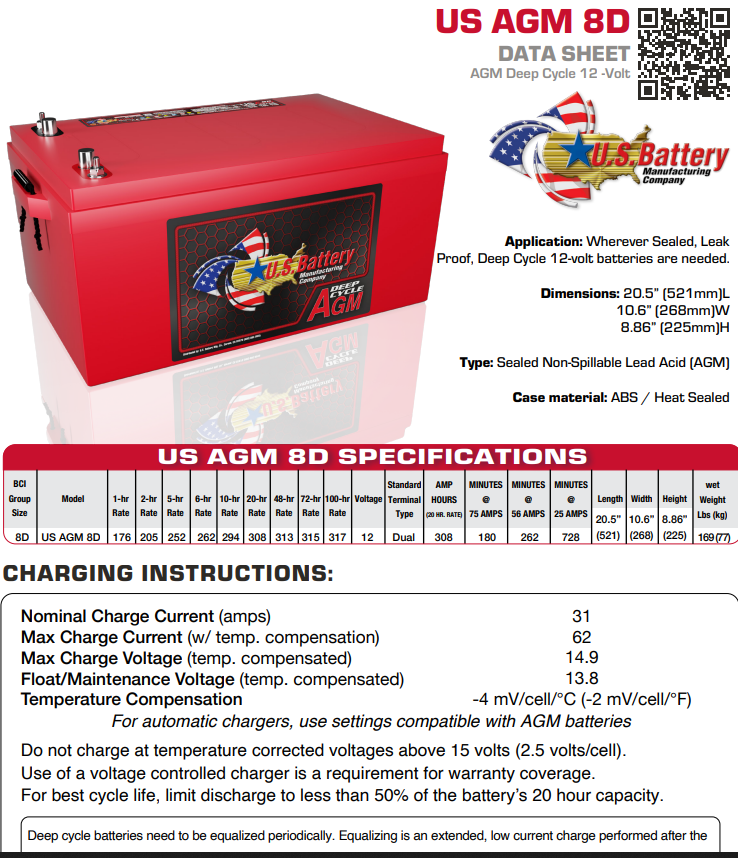

Description
Description
-
-

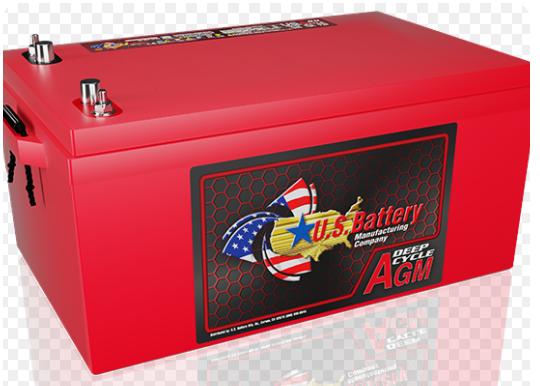

- 12 Volt Sealed AGM 8D Marine Terminal Battery
- 308 Ah @ 20-hr Rate
- Reserve Capacity 738 Min @ 25A 180 Min @ 75A
- Dimensions 20.5L x 10.6W x 8.86H inches
- Weight 169 lbs 77 kg
- Group size 8D
- Terminal Type: Dual Terminal or Marine Terminal Style
- 24 month warranty*
- Price is with Exchange
Nominal Charge Current 31 (amps)
Max Charge Current 62 (amps) (w/ temp. compensation)
Max Charge Voltage 14.9V(temp. compensated)
Float/Maintenance Voltage 138V(temp. compensated)
Temperature Compensation -4 mV/cell/°C (-2 mV/cell/°F) - 12 Volt Sealed AGM 8D Marine Terminal Battery
-
For automatic chargers, use settings compatible with AGM batteries.
Do not charge at temperature corrected voltages above 15 volts (2.5 volts/cell).
Use of a voltage controlled charger is a requirement for warranty coverage.
For best cycle life, limit discharge to less than 50% of the battery’s 20 hour capacity.
-
